18 listview

The listview (class name dmw_listview) is an advanced list object that supports various display types. The object is known in principle by the Windows Explorer, where it is used to display the directories of the file system.

The following figures show the different display types of the listview object:

1. The icon view displays large icons along with a caption. The first content column is used as the caption.



   Figure 13-23: Icon view with large icons of the listview

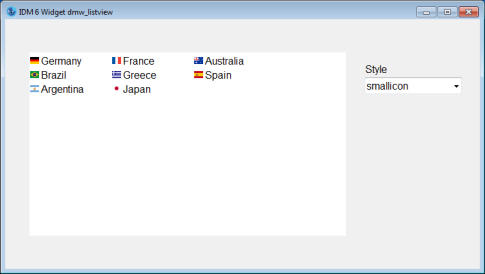

2. The small icon view is very similar to the icon view, the only difference is that small icons are used.



   Figure 13-24: Icon view with small icons of the listview

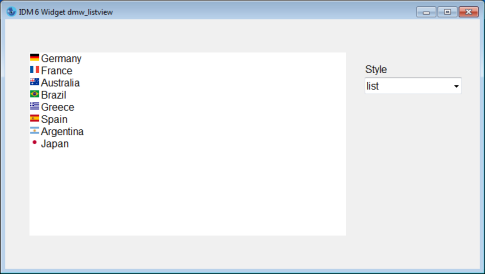

3. The list view also uses the small icons and the caption, but the items are arranged in a list from top to bottom. If necessary, additional columns are added.



   Figure 13-25: List view of the listview

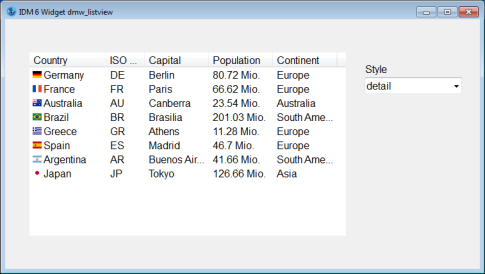

4. The detail view displays all available information in a table. Now the listview object resembles a table.



   Figure 13-26: Detail view of the listview

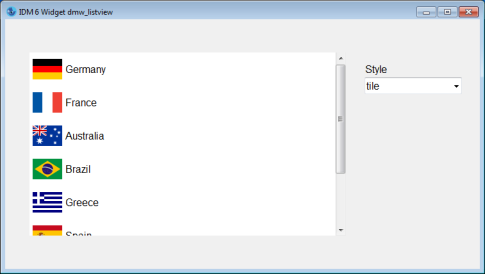

5. The tile view is like the list view, but shows large icons. The caption appears next to them.



   Figure 13-27: Tile view of the listview

Availability

• Microsoft Windows only.
• Can only be used with the USW option of the ISA Dialog Manager.
• The idmwidgets.dll must be in the USW class path (default: <IDM installation directory>\uswclasses).

18.1 Definition

{ export | reexport } { model } dmw_listview { <Identifier> }
{
  <standard attributes>
  <geometry attributes>
  <hierarchy attributes>
  <layout attributes>
  <text attributes>
  <object-specific attributes>
}
