38 statusbar

{ export | reexport } { model } statusbar { <Identifier> }
{
  <standard attributes>
  <plain attributes>
  <geometry attributes>
  <hierarchy attributes>
  <layout attributes>
  <text attributes>
  <object-specific attributes>
}

Events

extevent

Children

document


progressbar

record

statictext

transformer

Parent

module

window

Menu

none

38.1 Attributes

38.2 Specific Attributes

Statusbars can be used in top-level windows and child windows. If a child window has no visible statusbar, statushelp texts will be displayed in the statusbar of the parent window (if available).

The helptexts are set in the corresponding objects with the attribute .statushelp. The helptexts will be displayed if a menu is being selected or if the mouse is being moved to an object.

Only statictexts are valid as child objects. The attribute .width of the statictext specifies whether the statustext will be flat, sunken or raised. The texts will be displayed in the order of the children from the left to the right with the width specified in .width. The last child is enlarged up to the right margin. To avoid this you can add a dummy.

A special feature of the statictexts in the statusbar is the possibility to position texts with "\t".

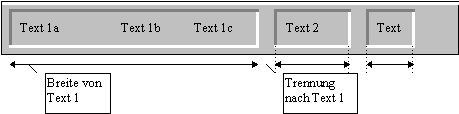

The following graphic shows the schematic structure of a statusbar:

A statusbar consists of up to 255 text fields which can either be connected to or separated from each other. In front of the first and after the last text field there is a "separation". The text is left-aligned within a text field. The "separation" between two text fields has the width of one raster unit, if the raster is switched on, otherwise the width will depend on the system.

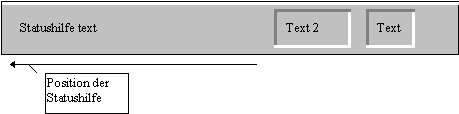

The statusbar can also display a helptext. This helptext can overlap all or several children, with the result that important information is still visible.

Geometry Attributes

The usual geometry attributes (width, height, position) will all be ignored, as the position of the statusbar is invariable. The statusbar is situated at the bottom line of the window, below the horizontal scrollbar if available. The statusbar extends over the entire window width; its height is defined by the indicated font.

The statusbar is not scrolled along with the window contents. This is why you have to note that the statusbar information remains visible in its totality. When calculating the geometry of the window the statusbar is not considered as a part of the window contents like the scrollbar but of the window frame.

Only the attributes .xraster and .yraster will be considered as they are useful when calculating the position of children.

Standard Attributes

Only the standard attribute .visible is considered. With this attribute the statusbar can be made visible or invisible. The attribute .sensitive is ignored as the statusbar is not selectable.

Layout Attributes

.borderstyle

.font

The font to be used for the text display is defined with the attribute .font. Fonts which have been defined at the corresponding objects will be ignored.

Specific Attributes

.helppos: This attribute indicates in which position the helptext .statushelp (see below) is to be displayed. 0 (default) defines a full-line representation of the help information. The value n defines the representation of the helptext via all children up to the n‑th child. If the value is <0 no help information will be displayed. This attribute may vary from window system to window system. The values 0 and -1 can always be set and will be displayed according to the description above.

.sizeraster: This attribute is used to calculate the sizeraster of the fields within the statusbar. The following values are valid:

• false (default): The size of the fields will be indicated in pixel. The distance between two text fields depends on the system.
• true: The size of the fields will be indicated in raster coordinates. The distance between two text fields is a raster.

38.3 Example

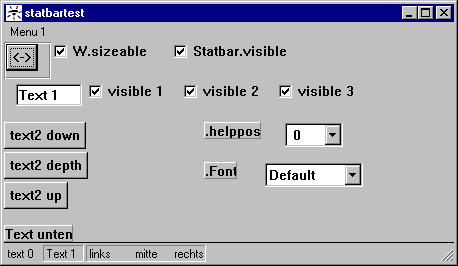

Window with statusbar which may be changed by window settings.

window W
{
  .width   400;
  .height  200;
  .vwidth  400;
  .vheight 200;
  .hsb_visible true;
  .vsb_visible true;
  .title   "statbartest";

  child statictext StHelppos
  {
    .xleft 200;
    .ytop  80;
    .text  ".helppos";
  }

  child statictext Sw
  {
    .yauto   -1;
    .ybottom 0;
    .text    "Text unten";
    .depth   1;
  }
  ...
  child statusbar S
  {
    child statictext St0
    {
      .width 0;
      .text  "text 0";
      .depth 0;
    }

    child statictext St1
    {
      .width 0;
      .text  "Text 1";
      .depth -1;
    }

    child statictext St2
    {
      .width 120;
      .text  "links\tmitte\trechts";
      .depth 1;
    }

    child statictext St3
    {
      .width 100;
      .text  "";
      .depth 0;
    }
  }
}
